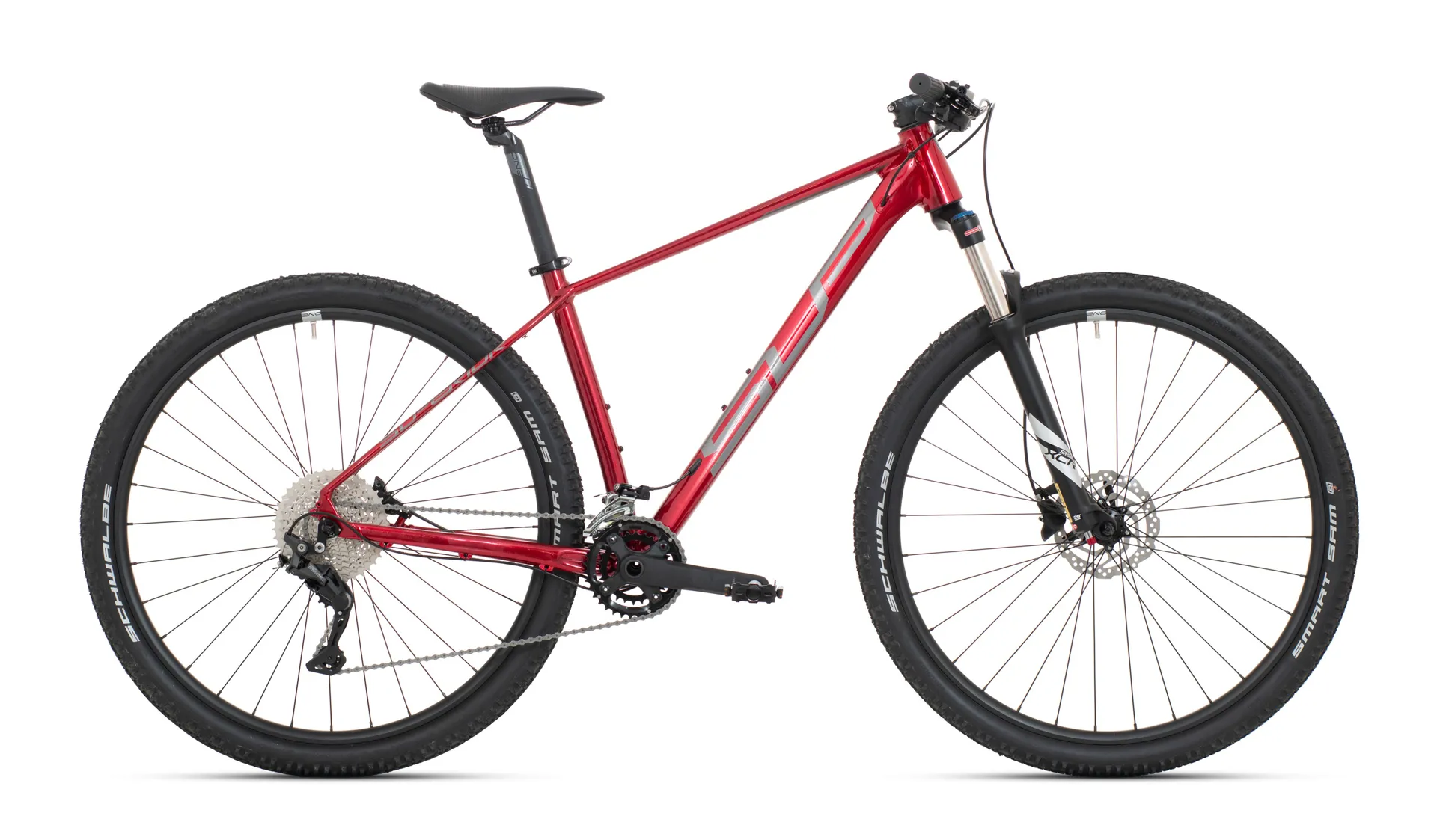

An aluminium frame 29“ bike with a sports geometry, equipped for all day trips and vigorous terrain and dirt road rides. The universal tires are fast both on and off the road and cycle path, and the reliable 2x10 Shimano components let you enjoy any terrain. The comfort of the Italian-designed seat is completed with ergonomic grips, handlebars, and a ONE1 dropper post. With the Suntour air fork, the terrain control will be precise and safe. It is possible to mount cargo rack, mudguards, and kickstand.
- Double butted, sports geometry aluminium frame with internal cable routing
- Adjustable Suntour remote lockout air fork
- Universal pattern Schwalbe tires
- 2x10 Shimano drivetrain for easy control
- High performance, gradual pressure Shimano brakes
- Mudguards, kickstand, and cargo rack options
FRAME
Alu 6061 T6 Double Butted, Smooth Welding, Sport Geometry, Conical Head Tube, BB BSA 73 mm, IDK dropout, Smoot Welding, Inner cable routing
HEAD SET
FSA Orbit 1.5B No.57B, Zero Stack, 1-1/8"
FORK
SR Suntour XCR32 LOR, 1-1/8", Air, QR Type, Lockout, 100mm travel
COLOUR
GLOSS DARK RED/CHROME SILVER
SIZES
16.0" (S), 18.0" (M), 20" (L), 22" (XL)
DRIVETRAINSHIFTER
SHIMANO DEORE SL-M5100-L RapidFire Plus, 2-speed, SHIMANO DEORE SL-M4100-R RapidFire Plus, 10-speed
FRONT DERAILLEUR
SHIMANO FD-M4100-M, SIDE SWING, FRONT-PULL
REAR DERAILLEUR
SHIMANO DEORE RD-M4120 Shadow
CRANKSET
ONE1 TAF38-239SS, 36-26T
CASSETE
SHIMANO CS-M4100-10, 11-42T
BOTTOM BRACKET
SHIMANO SM-BB52, BSA, shell 68/73mm
COMPONENTSHANDLEBAR
ONE1 Alloy, MTB AL-312BT, 9° backsweep, 12mm rise, 740mm, 31.8mm
STEM
ONE1 Sport MAS-D61248 Alloy, 31.8mm, -8°
GRIPS
ONE1 VLG-1661D2N, Lock-On
BRAKES
SHIMANO BL-MT200/BR-MT200, hydraulic disc brake
SADDLE
Selle Royal Vivo HRN
SEAT POST
ONE1 Sport Alloy, SP C207, 30.9mm
WHEELSFRONT HUB
SHIMANO HB-TX505, 32H, CENTER LOCK, QR Type
REAR HUB
SHIMANO FH-TX505-8, 32H, CENTER LOCK, M10x135mm, QR Type
TIRES
Schwalbe Smart Sam KevlarGuard, 29x2.10"
SPOKES
Sapim Galvanized Black
